momentary pedal Dual Momentary Footswitch / Foot Pedal for DC Linear Actuator / Motor (Model 0044107)

Package Include:
1 x Foot Switch
1 x User Manual

Introduction:

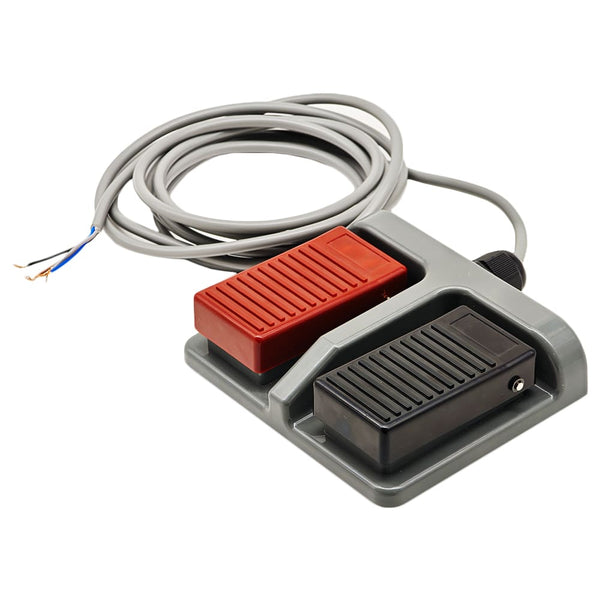

This foot switch features red and black buttons, corresponding to the “Forward” and “Reverse” functions respectively. If you connect a DC motor to this foot switch, you can operate the motor to rotate in positive or reversal direction by the foot pedal. If you connect a DC linear actuator to this foot switch, you can operate the linear actuator to extend or retract by the foot pedal.

Product Description:
Operating Voltage : DC 12V ~ 24V
Maximum Load Current: 6A
Two Buttons: Red button, Black button
Work Mode: Momentary
Power Cable: Four-core Wire
With a 300CM 20AWG four-core cable
Contact Material: Silver Contacts
Operating Temperature: -20°C to +70°C
Suitable for the following linear actuators: Type A/B/J/D/L/E/G/H
Internal cables are pre-wired
Size: 142 x 150 x 34 mm (5.6 x 5.9 x inches)

Wiring:
1) Connect the positive pole of the DC power supply to the white wire of the foot switch, and connect the negative pole of the DC power supply to the blue wire of the foot switch.
2) Connect two wires of the motor or linear actuator to brown and black wires of foot switch. (You can exchange these two wires to change the rotating direction of motor or the moving direction of linear actuator.)

Operation:
1) Press and hold the red button, motor rotates in positive direction, or linear actuator extends outward; Release the button, motor or linear actuator stops.
2) Press and hold the black button, motor rotates in reversal direction, or linear actuator inward retracts; Release the button, motor or linear actuator stops.
